Tools Needed:
- Adjustable Power Drill on Setting 14
- T-25 Torx Bit
We recommend removing your panels to install your plastic guides. See cover removal starting at the 10:00 time mark.
-
Have the plastic guide with the flat side facing up towards you.

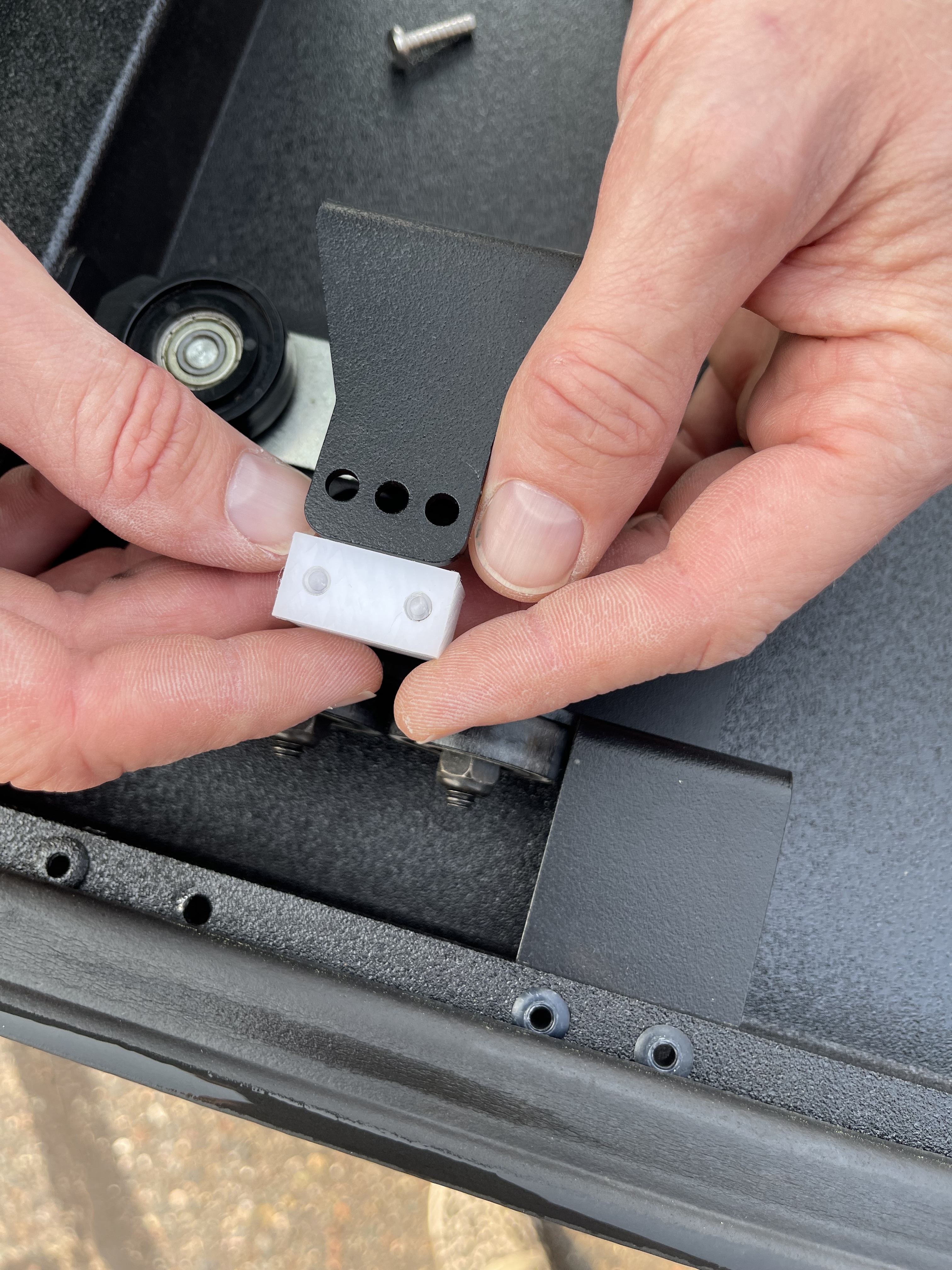

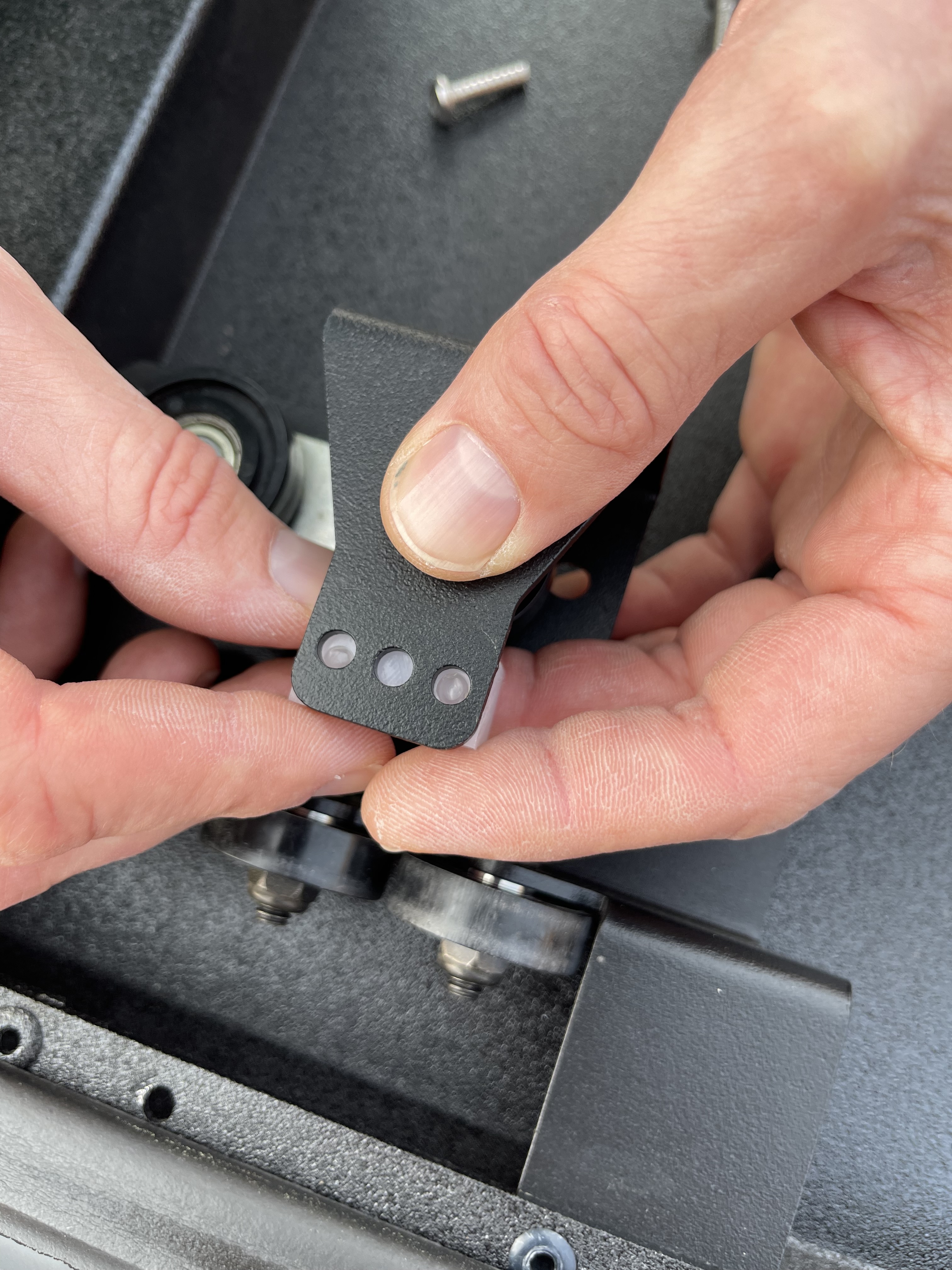

2. Place the plastic guide under your bracket aligning the outer holes.

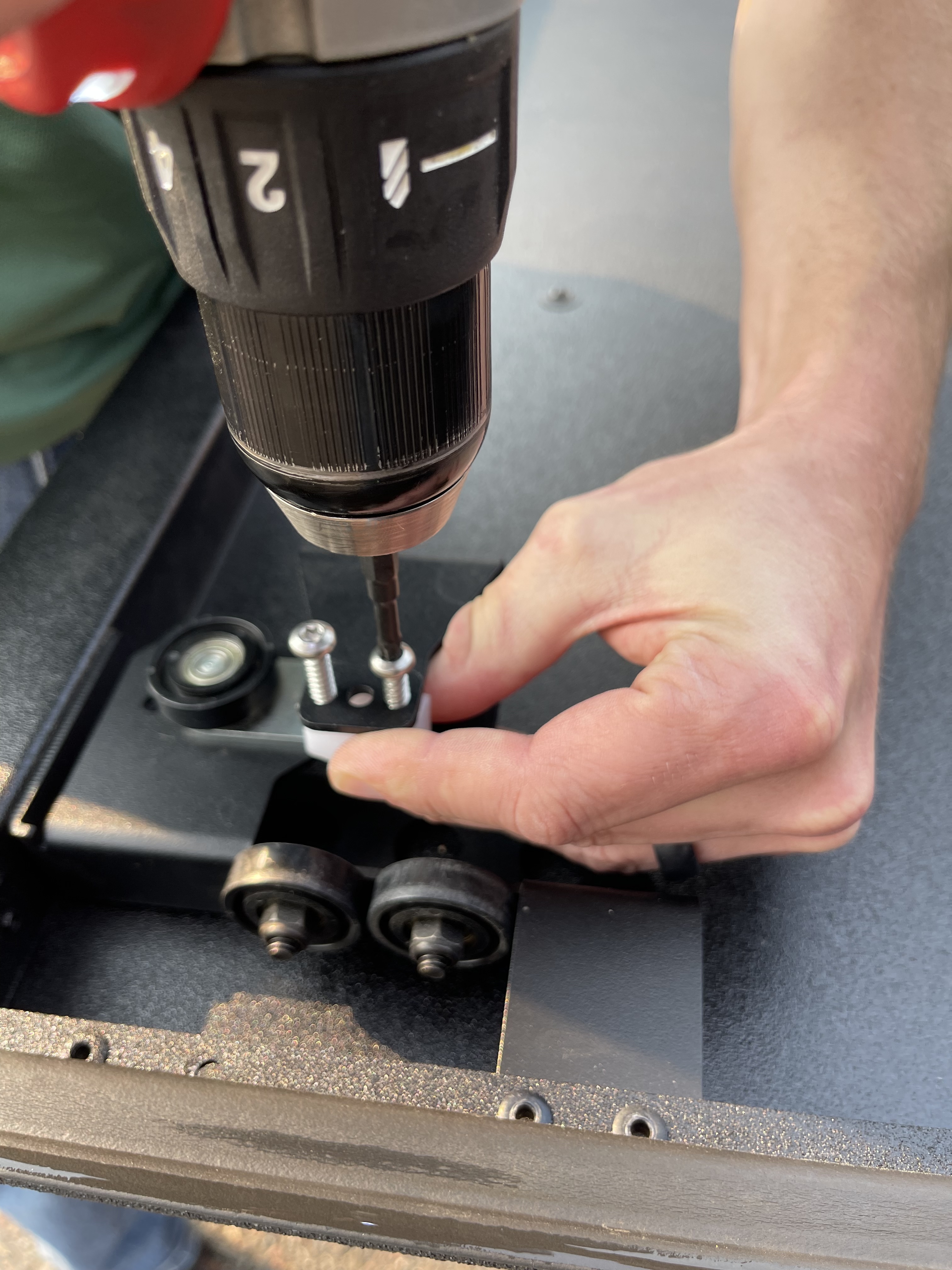

3. Insert one of your torx screws into an outer hole, grasp the plastic guide firmly, and drive the screw in 1/4 of the way. If needed, rotate your guide so that the second hole aligns. Take your second torx screw and drive that screw into the second hole all of the way.

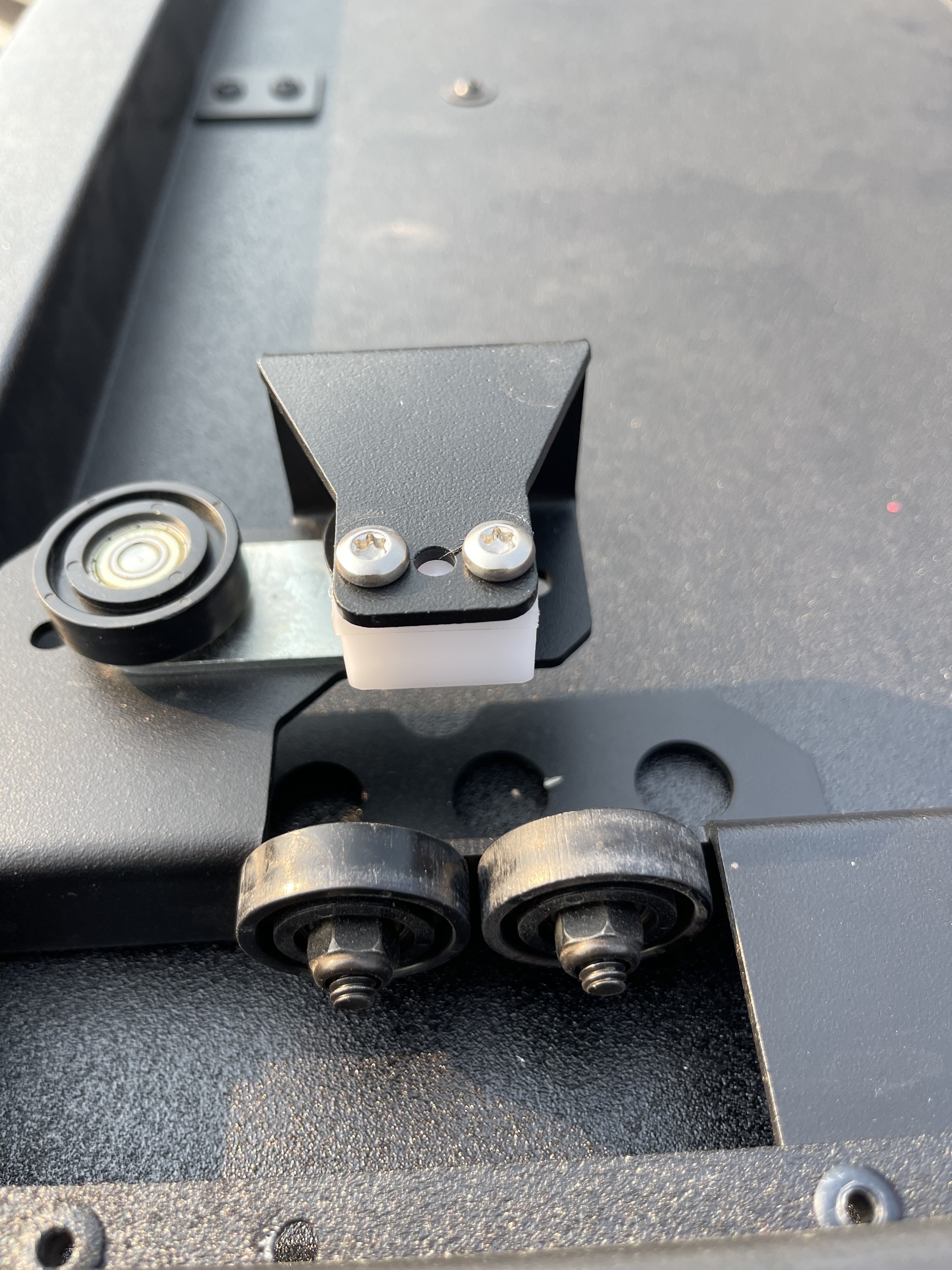

4. Confirm you have all four plastic guides installed on the brackets under your center panel as shown below. You can then reinstall your panels by viewing the video starting at the 3:54 time mark.
