Panel Height

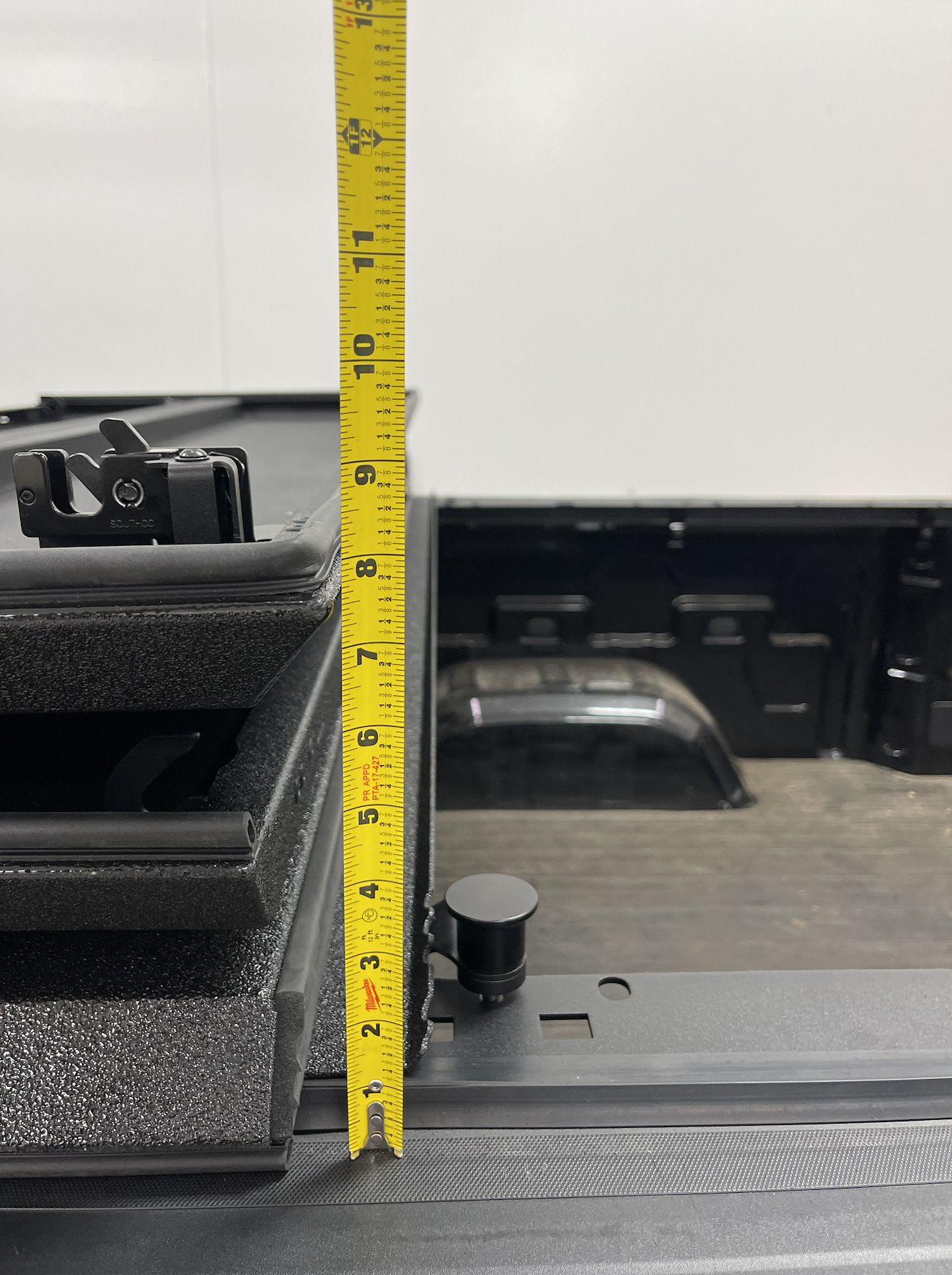

When folded up, the panel stack is almost 8.5" high.
Panel Width

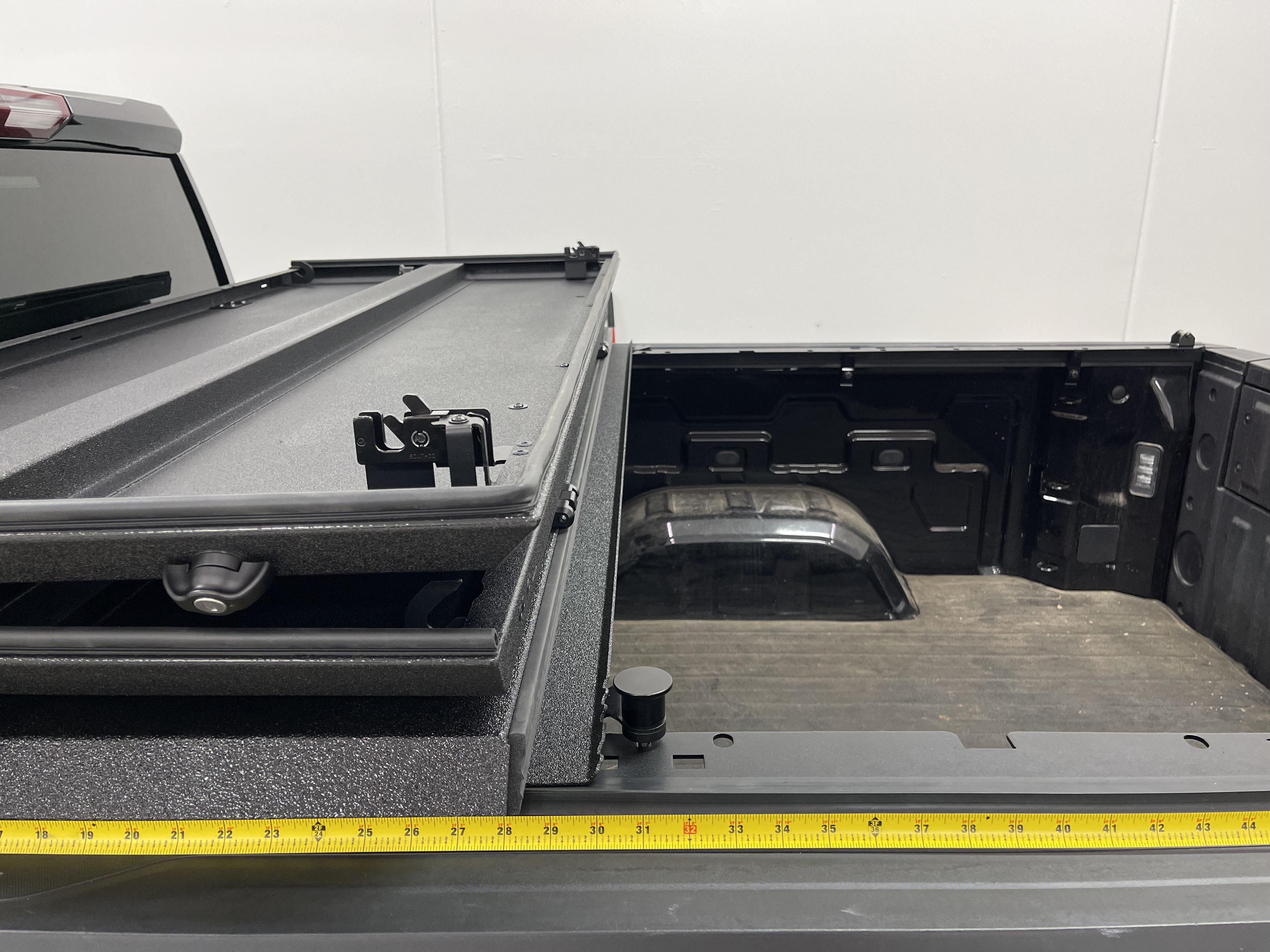

The following will let you know how wide the panels are for your specific truck when the panels are stacked and transitioned up to the cab. The following dimensions are measure from the inside edge of your cab rail to the tailgate side of your panel.
Chevrolet/GMC 5'8" Beds - 28 inches
Chevrolet/GMC 6'6" Beds - 30 inches
Ford - 5"6" Beds - 27 inches
Ford - 6'6" Beds - 31 inches
Tundra - 5'6" Beds - 27 inches
Tundra - 6'6" Beds - 31 inches
Panel Weight
Removing the panels are quick and easy when needing access to the entire bed. Each panel itself weighs roughly 30 lbs, with the whole stack weighing in at roughly 90 lbs.
Rail Width
The rails stick into the bed about 2 1/4".
If you are looking for information about the room needed to retract with our Landmark™ retractable, please view this link: https://support.peragon.com/hc/en-us/articles/360047699674-How-Much-Space-is-Needed-for-the-Cover-to-Retract
